AC220V 50 / 60Hz Automatic Packing Machine With Screw Conveyor 10-40 bags/min

Place of Origin : Shanghai, China (Mainland)

Brand Name : JB

Certification : CE

Price : US $9,000-24,000 / Sets | 1 Set/Sets (Min. Order)

MOQ : 1 Set/Sets

Model Number : JB-300F

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 SETS PER MONTH

Delivery Time : 20 WORKING DAYS

Packaging Details : WOODEN BOX

Condition : New

Application : Food

Packaging Type : Film

Packaging Material : Wood

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V

Power : 1.9KW

Weight : 360kg

Dimension(L*W*H) : L1800xW1250xH1780mm

After-sales Service Provided : Engineers available to service machinery overseas

Machine name : wheat flour packing machine

controller : PLC

making bag size : L50-300mm, W50-210mm

packing speed : 10-40 bags/min

Film width : max 450mm

Motor type : Servo

Packing range : 50-1500ML

Food contac parts : SS304

Langauge : English

Service time : lifelong

Contact Now

Automatic Auger Filler Chocolate Powder Packing Machine , 1kg Cocoa Powder Packing Machine With Screw Conveyor

Usage

This machine is widely used for packaging powder products: such as milk powder, flour, starch, coffee powder, spices, curry powder, protein powder, condiment, herbal powder, chemical and medical powder products.

Function and features

1. This machine can automatically complete the following work: auger filler measuring--coding (optional)--bag making--filling--sealing--counting.
2. PLC control system, color touch screen display, photoelectric tracking, high reliability and intellectualized degree.
3. Equipped with fault display system, easy to operate and maintain.
4. Make hole punching blades (round/ euro hole) and chain bags device according to customer's request.
5. Machine shell and all food touching parts are made of 304 stainless steel.

Technical parameter

Model	YB-300F
Packing speed	10-40bags/min
Packing range	50-1500ml
Film width	≤ 450mm pillow seal ≤ 380mm 3/4 sides seal
Making bag size	L: 50-300mm, W: 15-210mm
Packing accuracy	≤ ±1%
Power	1.9 KW
Power supply	AC220V, 50/60Hz
Seal type	3/4 sides seal, pillow sea
Net weight	360kg
Machine dimension	L1100 × W800 × H1900mm

LT3 screw conveyor for powder function
1. Adopts double motors: feeding motor and vibration motor, control independently.
2. Vibration type material hopper, and adjustable amplitude, the hopper was designed to be separate type, easy assembling and dismantle.
3. Spiral can reverse discharging material, convenient cleaning.
4. The machine’s overall height depends on packing machine’s height.
5.Machine body and product touching product are made of 304 stainless steel.

Technical parameters

Model	YB-LT3
Feeding speed	3m³/h
Material hopper volume	230L
Power supply	1ph , 220V, 50/60Hz
Power	820 W
Machine size	L1000 × W800 × H900mm
Machine weight	150kg

Product description

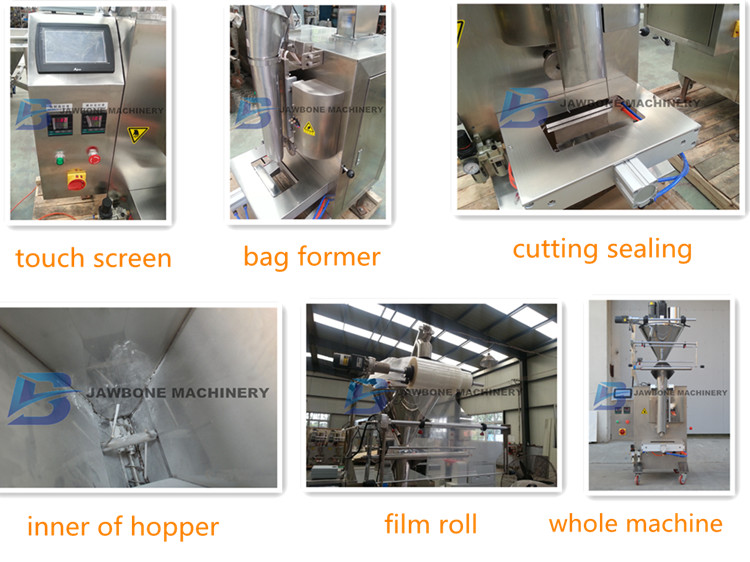

1.300F show details

AC220V 50 / 60Hz Automatic Packing Machine With Screw Conveyor 10-40 bags/min

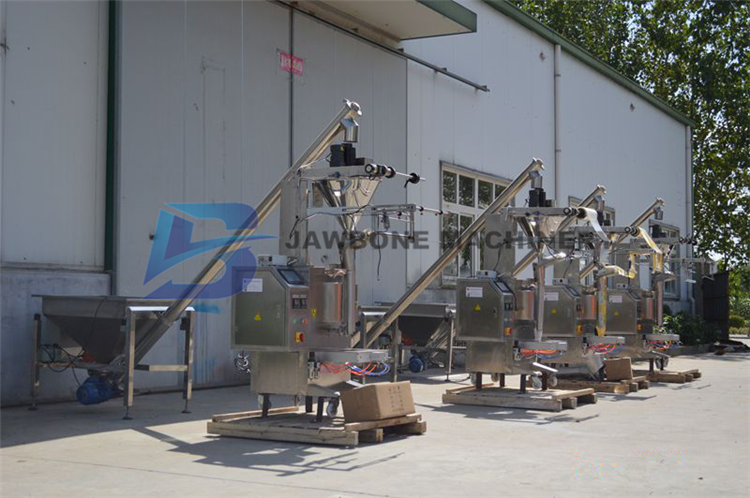

2.300F +LT3 screw conveyor for powder
