Pillow Seal Honey Sachet Packing Machine , Vertical Liquid Packing Machine

Place of Origin : Shanghai, China (Mainland)

Brand Name : JB

Certification : CE

Price : US $4,350-5,050 / Sets | 1 Set/Sets Automatic honey sachet packing machine (Min.

MOQ : 1 Set/Sets A

Model Number : JB-300J

Type : Other

Condition : New

Application : Beverage, Chemical, Commodity, Food, Medical, vffs packaging machine

Packaging Type : Bags, Film, Pouch, vffs packaging machine

Packaging Material : Wood, honey sachet packing machine

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V

Power : 1.9KW

Weight : 350kg

Dimension(L*W*H) : L800*W1100*H1900mm

After-sales Service Provided : Engineers available to service machinery overseas

Product name : honey sachet packing machine

machine touching parts : SS304/carbon steel

sealing type : pillow seal

making bag size : L50-300mm, W50-200mm

production capacity : 20-60bags/min

controller : PLC

electric source and power : 1Ph, AC220V, 50/60Hz

machine weight : 350kg

warranty : 1 year

Packing range : 50-1000ml

Contact Now

JB-300J vertical Liquid packaging machine Automatic honey sachet packing machine

Product Description

Usage:

This machine is mainly used for ketchup/tomato sauce, chili sauce, hotpot condiment, salad

cream, cooking oil, honey, yogurt, fruit juice, wine, vinegar, shampoo, hair conditioner, facial

cream, medical and chemical liquid/paste quantitative packaging.

Function and features:

1. This machine can automatically complete following work: piston pump measuring--coding (optional)--bag making--filling--sealing--hole punching (optional)--counting.

2. Computer/PLC control system, photoelectric tracking, maximizes the whole machine's control precision, reliability and the intellectualized degree.

3. Has fault display system, easy to operate and maintenance.

4. Can choose mixing device, hopper heating device according to product character.

5. Machine body and all food touching part are made by 304 stainless steel

Technique Parameter

Model	YB-300J
Packing speed	10-50 bags/min
Packing range	50-1000ml
Film width	≤450mm
Making bag size	L: 50-300mm, W: 50-200mm
Packing accuracy	≤±1%
Power	1.9 KW
Power supply	AC220V, 50/60Hz
Seal type	3/4 sides seal, pillow seal
Net weight	350kg
Machine dimension	L800 × W1100 × H1900mm

1. This machine can finish these work automatically: measuring--making bag--coding (option)--filling--gas injection(option)--sealing--counting.

2.Computer/PLC control system, photoelectric tracking, which improve the control precision, reliability and intelligence at the maximum limit.

3.Has fault display system, easy to operate and maintain.

4.Make punching blade after customer's special request.

5.Full stainless steel or carbon steel machine for choice.

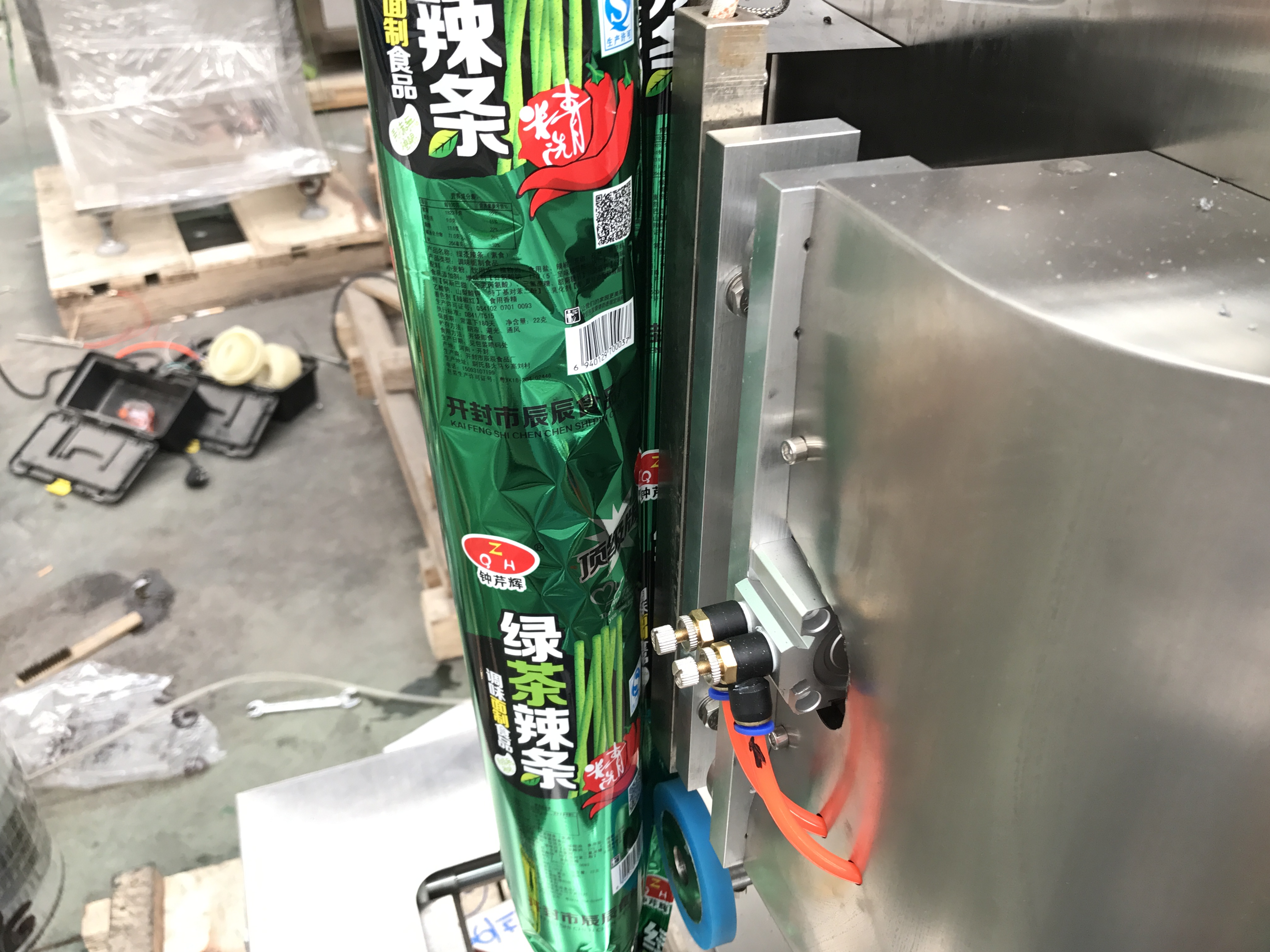

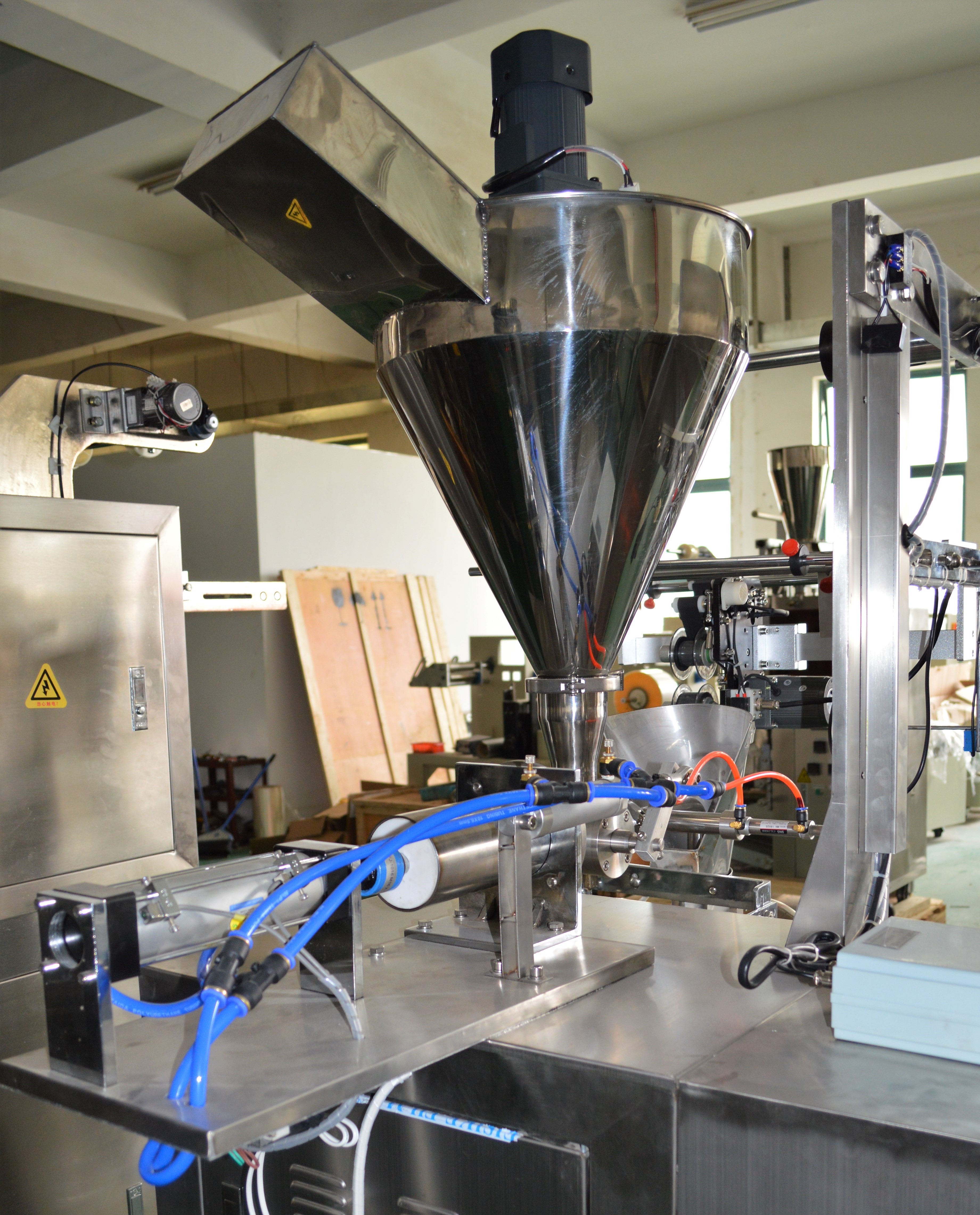

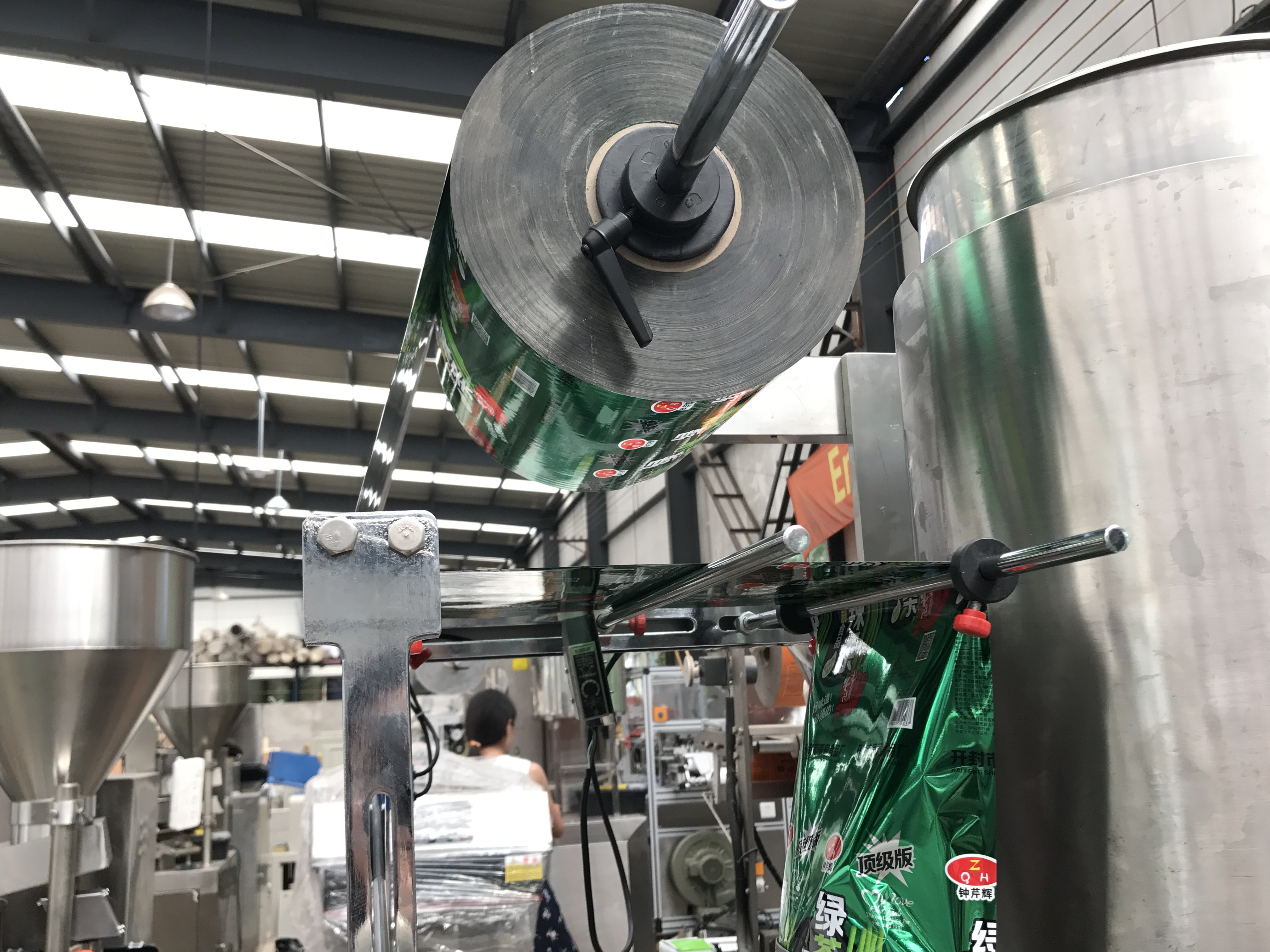

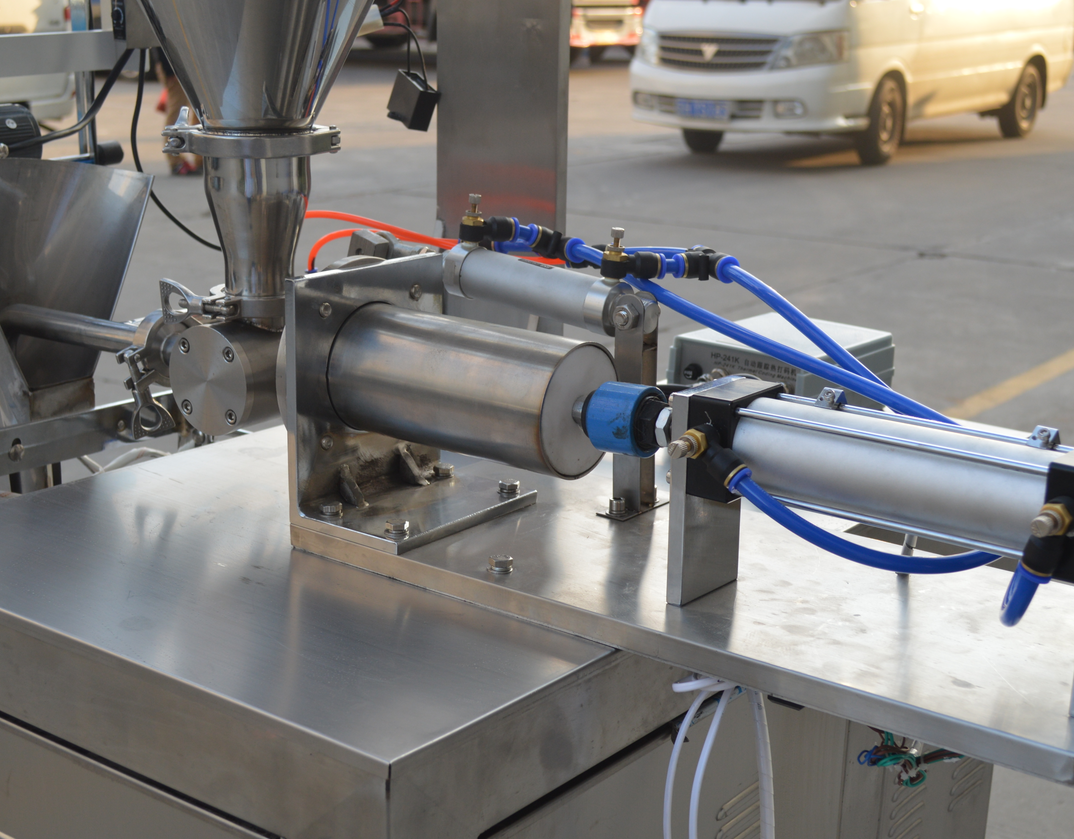

Machine main picture

Pillow Seal Honey Sachet Packing Machine , Vertical Liquid Packing Machine
