Vertical Automatic Liquid Sauce Packing Machine Fault Display System Founded

Place of Origin : Shanghai, China (Mainland)

Brand Name : YB

Model Number : YB-300J

Certification : CE

Price : US $5,300-5,500 / Sets | 1 Set/Sets honey stick pack packing machine (Min. Order)

MOQ : 1 Set/Sets

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30 sets per month

Delivery Time : 20-25 working days

Packaging Details : standard wooden box

Name : Honey Filling Machine

Weight : 350kg

Dimension(L*W*H) : L800*W1100*H1900mm

After-sales Service Provided : Engineers available to service machinery overseas

making bag size : L50-300mm, W50-210mm

production capacity : 10-35 bags/min

Contact Now

Shanghai Factory price YB-300J Automatic pouch liquid sauce honey stick pack packing machine

Usage:

This machine is mainly used for ketchup / tomato sauce, chili sauce, hotpot condiment, salad

cream, cooking oil, honey, yogurt, fruit juice, wine, vinegar, shampoo, hair conditioner, facial

cream, medical and chemical liquid/paste quantitative packaging.

Function and Features:

1. This machine can automatically complete following work: piston pump measuring--coding (optional)--bag making--filling--sealing--hole punching (optional)--counting.

2. Computer/PLC control system, photoelectric tracking, maximizes the whole machine's control precision, reliability and the intellectualized degree.

3. Has fault display system, easy to operate and maintenance.

4. Can choose mixing device, hopper heating device according to product character.

5. Machine body and all food touching part are made by 304 stainless steel

Technique parameter

Model	YB-300J
Packing speed	10-35 bags/min
Packing range	50-1500ml
Film width	≤450mm
Making bag size	L: 50-300mm, W: 50-210mm
Packing accuracy	≤±1%
Power	1.9 KW
Power supply	AC220V, 50/60Hz
Seal type	3/4 sides seal, pillow seal
Net weight	350kg
Machine dimension	L800 × W1100 × H1950mm

Machine main picture

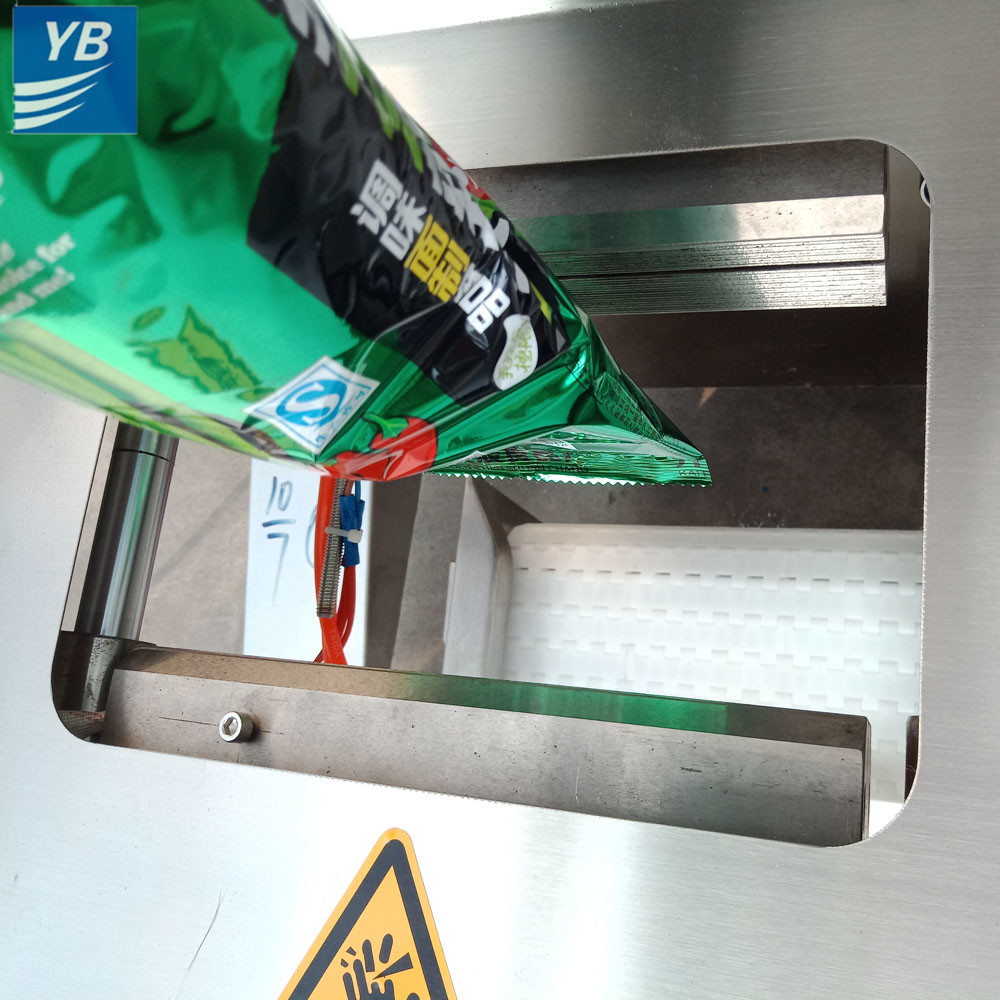

Horizontal seal and cut:

Vertical Automatic Liquid Sauce Packing Machine Fault Display System Founded

Electric parts:

Vertical Automatic Liquid Sauce Packing Machine Fault Display System Founded

Ask for Price

Whether you're expanding your operations or need to replace a particular piece of equipment, we have a wide selection of dependable, high performance packaging machinery to suit your requirements and keep production running smoothly and efficiently. There are transport conveyors to securely move materials and objects, scales and counters offering standard or precision measurements and several types of filling equipment for liquids, pastes, powders, and granules.

We service business handling food, pharmaceuticals, medical equipment, paper materials, electronics, machine parts, sports equipment, agricultural products, military equipment and much more.
