PLC Control Sauce Packing Machine Used For Ketchup / Tomato Sauce / Chili Sauce

Place of Origin : Shanghai, China (Mainland)

Brand Name : JB

Model Number : JB-300J liquid filling and packing machine

Certification : CE

Price : US $4,350-5,050 / Sets | 1 Set/Sets liquid filling and packing machine (Min. Orde

MOQ : 1 Set/Sets l

Supply Ability : 50 sets per month

Delivery Time : 25 working days

Packaging Details : wooden box

Type : Other

Condition : New

Application : Commodity

Packaging Type : Bags, Film, Pouch, liquid filling and packing machine

Packaging Material : Wood

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V

Power : 1.9KW

Weight : 350kg

Dimension(L*W*H) : L800*W1100*H1900mm

After-sales Service Provided : Engineers available to service machinery overseas

Product name : liquid filling and packing machine

machine touching parts : SS304/carbon steel

sealing type : pillow seal

making bag size : L50-300mm, W50-200mm

production capacity : 20-60bags/min

controller : PLC

electric source and power : 1Ph, AC220V, 50/60Hz

machine weight : 350kg

warranty : 1 year

Packing range : 50-1000ml

Contact Now

PLC Control JB-300J Automatic Olive Oil , Ketchup And Fruit Jam Filling And Packing Machine

Usage:

This machine is mainly used for ketchup/tomato sauce, chili sauce, hotpot condiment, salad

cream, cooking oil, honey, yogurt, fruit juice, wine, vinegar, shampoo, hair conditioner, facial

cream, medical and chemical liquid/paste quantitative packaging.

Function and Features:

1. This machine can automatically complete following work: piston pump measuring--coding (optional)--bag making--filling--sealing--hole punching (optional)--counting.

2. Computer/PLC control system, photoelectric tracking, maximizes the whole machine's control precision, reliability and the intellectualized degree.

3. Has fault display system, easy to operate and maintenance.

4. Can choose mixing device, hopper heating device according to product character.

5. Machine body and all food touching part are made by 304 stainless steel

Technique Parameter

Model	YB-300J
Packing speed	10-50 bags/min
Packing range	50-1000ml
Film width	≤450mm
Making bag size	L: 50-300mm, W: 50-200mm
Packing accuracy	≤±1%
Power	1.9 KW
Power supply	AC220V, 50/60Hz
Seal type	3/4 sides seal, pillow seal
Net weight	350kg
Machine dimension	L800 × W1100 × H1900mm

PLC Control Sauce Packing Machine Used For Ketchup / Tomato Sauce / Chili Sauce

Product Tags:

sauce pouch packing machine

hot sauce filling machine

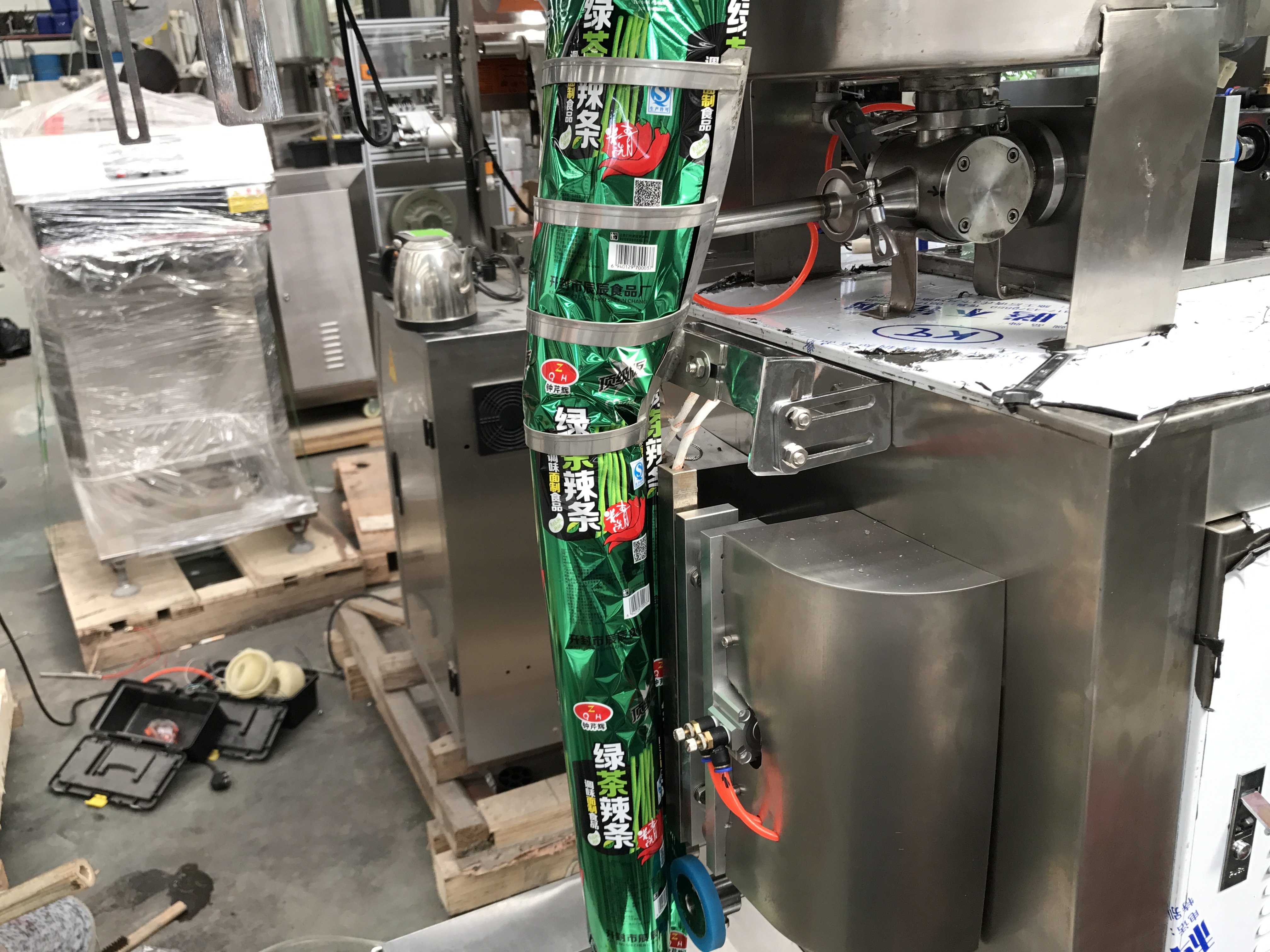

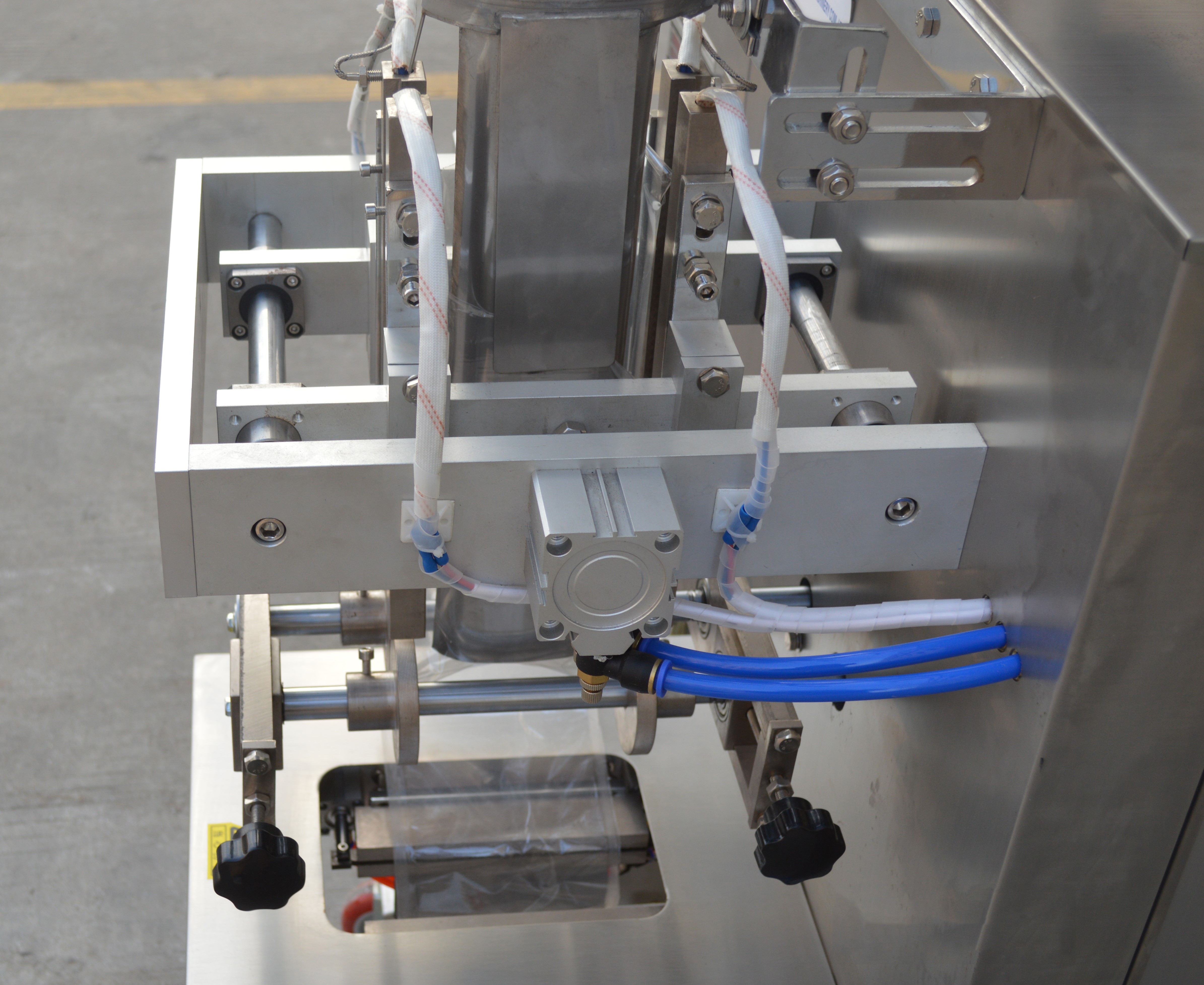

PLC Control Sauce Packing Machine Used For Ketchup / Tomato Sauce / Chili Sauce Images
